Giant Button Head Sealant Injection Grease Fittings Manufacturer In India

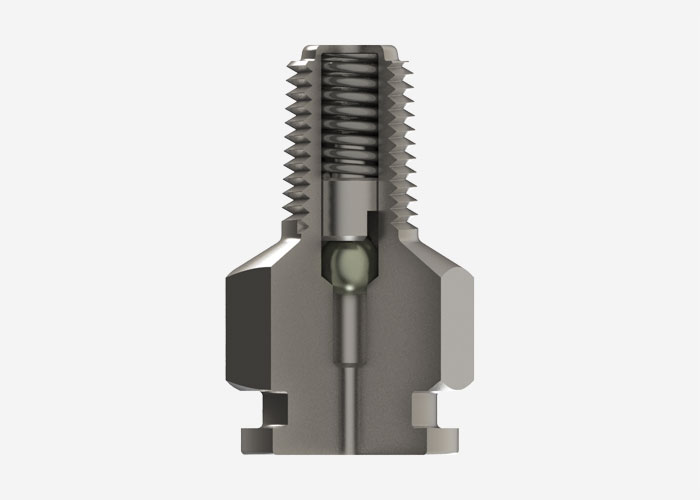

Giant Button Head Sealant Injection Grease Fittings

We are the one of the leading Giant Button Head Sealant Injection Grease Fittings Manufacturers, Exporters, and Suppliers in India. Phoenix’s Giant Button Head Sealant Injection Grease Fittings are used to provide lubrication for Valves to stop the internal leakage of the valve thereby improving system integrity. Our Precision Components are Machined, Assembled, and Tested to the highest quality standard. The pressure range is 6000 to 10000 PSI and the temperature range is up to 180°C. Contact us for Higher pressure and Temperature requirements.

Contact Us For Giant Button Head Sealant Injection Grease Fittings Manufacturer, Exporter, and Supplier in India.

Giant Button Head Fitting

 giant button head grease fittings
 giant button head grease fittings
 giant button head grease fittings
 giant button head grease fittings
 giant button head grease fittings
 giant button head fittings manufacturer

Giant Button Head Sealant Injection /Grease Fitting Specifications

Sr No Part Description Material Bill Of Material
Body Cap Retainer Ball Spring
1 Button head BGF/Sealent Injector A-105 A-105 A-105 A-105 TC Inconel X 750
2 Button head BGF/Sealent Injector A-105 A-105 A-105 A-105 SS420 SS302
3 Button head BGF/Sealent Injector AISI4140 AISI4140 AISI4140 AISI4140 SS420 SS302
4 Button head BGF/Sealent Injector AISI4140 AISI4140 AISI4140 AISI4140 SS302 SS302
5 Button head BGF/Sealent Injector SS316 SS316 SS316 SS316 SS420 SS302
6 Button head BGF/Sealent Injector SS316 SS316 SS316 SS316 TC Inconel X750
7 Button head BGF/Sealent Injector SS316 SS316 SS316 SS316 K-Monel Inconel X 750
8 Button head BGF/Sealent Injector Duplex F 51 Duplex F 51 Duplex F 51 Duplex F 51 TC Inconel X 750
9 Button head BGF/Sealent Injector Duplex F 55 Duplex F 55 Duplex F 55 Duplex F 55 TC Inconel X 750
10 Button head BGF/Sealent Injector Duplex F 53 Duplex F 53 Duplex F 53 Duplex F 53 TC Inconel X 750
11 Button head BGF/Sealent Injector Duplex 32205 Duplex 32025 Duplex 32205 Duplex 32205 TC Inconel X 750
12 Button head BGF/Sealent Injector Inconel 625 Inconel 625 Inconel 625 Inconel 625 TC Inconel X 750
13 Button head BGF/Sealent Injector Inconel 825 Inconel 825 Inconel 825 Inconel 825 TC Inconel X 750
Available in Threading Sizes :   ¼”-18 NPT, ½”-14 NPT , 3/8” -18 NPT, ¼”- BSP, ½”-BSP , 3/8” –BSP
Operating Pressure :   6000 to 15000 PSI.
